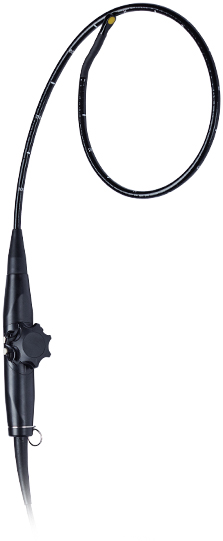

T7P2m (9027) TEE Transducer
-
- The transesophageal echocardiography (TEE) transducer T7P2m* is ideal for ultrasound examinations of all areas of the heart (including chambers, valves, and the aorta) without interference from the ribs or lungs.
-
- Useful in monitoring cardiac surgery procedures.
-
- 4-way flexible mechanism provides precise positioning for optimal cardiac imaging.
-
- Ergonomic control handle allows for one-handed operation
- *T7P2m is compatible with bk3000/bk5000 software version 5.16.2 and higher
T7P2m is not CE-marked for use on the bk3000/bk5000 - T7P2m has not been licensed by Health Canada for use on bk5000
Specifications
Applications
Cardiac
Frequency Range
7-2 MHz
Focal Range
5-135 mm
Contact Surface
14 x 29 mm
Scanning Modes
B, M, Color Doppler, CW Doppler, PW Doppler, Tissue Harmonic Imaging
Compatible Ultrasound Systems
bk3000, bk5000, bkActiv
Image Field
Sector 90º Phased Array
Weight
1350 g
Scanplane Rotation (Min)
180º
Reprocessing Information
View Reprocessing Information
